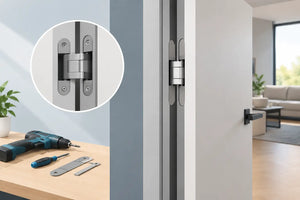

A beautiful flush interior door can lose its crisp, architectural effect the moment a bulky hinge breaks the line of the frame. Concealed hinge installation solves that detail by placing the hardware inside precisely cut pockets in the door and jamb. When the door is closed, the hinge is nearly invisible, leaving the panel, frame, finish, and handle to do the visual work.
For a contemporary Los Angeles renovation, this small construction detail has an outsized impact. Invisible hinges complement sleek European-style doors, magnetic locks, minimalist levers, glass inserts, and clean wall planes. They look spectacular because they remove visual clutter, but they demand more planning than standard butt hinges. Precision is not optional.
Why Concealed Hinges Change the Look of a Door
A traditional hinge is part of the door's visible design. That can be appropriate for a classic paneled door or a decorative brass scheme. A concealed hinge takes the opposite approach: it lets the door read as one continuous, tailored surface. This is especially effective with modern slab doors, flush frames, full-height designs, and matte or high-gloss finishes.
The benefit is not only aesthetic. Quality concealed hinges are typically adjustable after installation, allowing an installer to refine the door's height, side-to-side position, and depth relative to the jamb. That adjustment can be valuable as a new home settles, flooring transitions are completed, or seasonal changes affect wood-based materials.
There is a trade-off. Concealed hinges cost more than basic hinges, require routed recesses in both the door and frame, and need the correct hinge model for the door's weight and thickness. They are a premium hardware choice, not an accessory to select at the very end of a project.
Plan Concealed Hinge Installation Before Ordering
The cleanest installations begin while the door package is still being specified. Door size, construction, swing direction, frame profile, wall condition, hardware finish, and latch type all affect the final result. A concealed hinge cannot simply be substituted for a conventional hinge after the door and jamb have been prepared differently.
Start with the door itself. Solid-core interior doors and engineered European door systems often provide the stability and weight capacity that concealed hardware needs, but each hinge has a rated load. A narrow, lightweight bedroom door may use two hinges, while a tall or heavy solid-core door may require three or more. Glass details, mirror surfaces, unusual heights, and dense decorative panels can also increase door weight.
The hinge manufacturer’s template and specifications should determine the hinge quantity, spacing, pocket dimensions, screw type, and clearance requirements. Do not estimate these measurements from a photo or copy the placement from a different door. Hinge systems vary in size and pivot geometry, even when they appear similar from the outside.
Door handing matters as well. Confirm whether the door is left-hand or right-hand, inswing or outswing, and whether it must open 180 degrees or only to a smaller angle. A concealed hinge must match the intended operation. Selecting hardware without confirming the swing is one of the fastest ways to create an expensive correction.
Coordinate the Frame, Lock, and Floor Conditions
Modern door systems are coordinated assemblies. The frame needs to be compatible with concealed hinge pockets, and a magnetic lock should be located so its strike aligns correctly once the door is adjusted. If the design includes a telescopic frame, concealed frame detail, or narrow contemporary reveal, installation tolerances become even more visible.
Flooring also has a role. Final floor height should be known before setting the door. A beautiful flush door with a tight, intentional bottom reveal can look wrong if it was hung before tile, wood flooring, or a thick transition was installed. Protect the planned gap below the door, particularly in bathrooms, closets, and rooms with changing floor finishes.
The Precision Work Behind Concealed Hinge Installation
Concealed hinge installation is a routing and alignment job, not a simple screw-in hardware task. The installer marks hinge locations, creates matching mortises in the door edge and jamb, secures the hinge bodies, hangs the door, and uses the hinge adjustments to refine the reveals.
A shop-built door and frame package is often the best route because the mortises can be machined using the exact hinge template before delivery. This improves consistency across a home with multiple doors and keeps the finished surfaces safer from jobsite damage. On-site routing can work when performed by an experienced door installer, but it requires stable work support, the correct jig, sharp cutting tools, and careful protection of the door finish.
The mortises must be clean, square, and at the proper depth. If a pocket is shallow, the hinge can bind or push the door out of plane. If it is too deep or too loose, the hinge may not sit securely. A poorly placed mortise can leave a door with uneven reveals that adjustment screws cannot fully correct.
Once the hardware is secured, the door is set in the opening and checked before final tuning. The top, hinge-side, and latch-side gaps should appear consistent. The door should swing without rubbing, close without force, and sit flush with the frame as intended. This is where concealed hinges show their value: small adjustments can bring the door into a refined, balanced position.
How the Three Adjustments Work
Most premium concealed hinges provide three-way adjustment. The exact screws differ by brand, so the installer should follow the hardware instructions rather than turning screws by trial and error.
Height adjustment raises or lowers the door to establish the correct top gap and floor clearance. Side adjustment moves the door toward or away from the hinge side, helping create a consistent latch-side reveal. Depth adjustment moves the door inward or outward, allowing the face of the closed door to align cleanly with the frame.
These adjustments are meant for fine-tuning, not for correcting a twisted jamb, an out-of-plumb opening, or a door that was manufactured to the wrong size. If the frame is not installed square and secure, the hardware will be asked to compensate for a structural problem it cannot solve.
Test the Door as a Complete System
Do not judge the installation only by whether the door opens. Close it slowly and inspect the perimeter from several angles. Check the handle height, magnetic latch engagement, latch-side gap, and the way the panel meets the frame. Then open the door through its full planned range to make sure it clears nearby walls, cabinetry, or furniture.
For a whole-home project, check this door against the rest of the design package. Concealed hinges look their best beside coordinated door handles, magnetic locks, flooring, cabinetry, and wall finishes. That sense of continuity is what makes a renovation feel considered rather than assembled one product at a time.
Common Problems and How to Avoid Them
The most common issue is choosing a hinge with insufficient capacity. A door may initially operate correctly but begin to sag or lose its reveal over time. Match the hardware to the real door weight, not a rough guess, and use the recommended number of hinges.
Another problem is installing the door before final flooring or before confirming the finished opening. Small changes in floor level and wall finish thickness can affect a modern flush-frame door more than homeowners expect. Establish the final dimensions early and protect them throughout construction.
Finish damage is also a practical concern. Concealed hinge pockets are highly visible while the door is being machined, and a chipped lacquered edge or scratched veneer can compromise an otherwise luxurious result. Finished doors should be handled in a clean work area, with hardware installed using the proper bits and controlled screw torque.
Finally, avoid treating hinge adjustment as a one-time task. A short follow-up adjustment after the home is occupied can be worthwhile, especially with tall doors or newly conditioned interiors. It is a normal finishing detail, not a sign that the hardware has failed.
When Professional Installation Is Worth It
A standard lightweight door in a forgiving opening may be within reach for a highly skilled installer with the correct routing equipment. But premium doors, concealed frames, magnetic locks, glass inserts, and multi-door renovations are usually better handled as a coordinated system.
That is where a design-oriented supplier and installation team can simplify the process. InnoLux Design can help align door style, frame construction, hinge compatibility, lock choice, finish, and installation expectations before products arrive at the jobsite. For homeowners, designers, and contractors, that coordination protects both the visual concept and the investment.
The final goal is simple: a door that feels substantial, closes quietly, aligns beautifully, and lets the design of the room take center stage. When concealed hinges are selected early and installed with care, the hardware disappears exactly when it should.
